Cite Test Guide¶
A step by step guide to the GeoServer Compliance Interoperability Test Engine (CITE).
Contents
Check out CITE tools¶
The CITE tools are available at https://github.com/jdeolive/geoserver-cite-tools. The README file contains the most update documentation of how to checkout and build the tools. The quick version is:
git clone git://github.com/jdeolive/geoserver-cite-tools.git
cd geoserver-cite-tools
git submodule update --init
mvn clean install
Run WFS 1.0 tests¶
Note
Running WFS 1.0 tests require PostGIS to be installed on the system.
Create a PostGIS user named “cite”:
createuser cite
Create a PostGIS databased named “cite”, owned by the “cite” user:
createdb -T template_postgis -U cite cite
Change directory to the
citewfs-1.0
data directory and execute the scriptcite_data.sql
:psql -U cite cite < cite_data.sql
Start GeoServer with the
citewfs-1.0
data directory. Example:cd <root of geoserver install> export GEOSERVER_DATA_DIR=<root of geoserver sources>/data/citewfs-1.0 ./bin/startup.sh
Change directory back to the cite tools and run the tests:
ant wfs-1.0

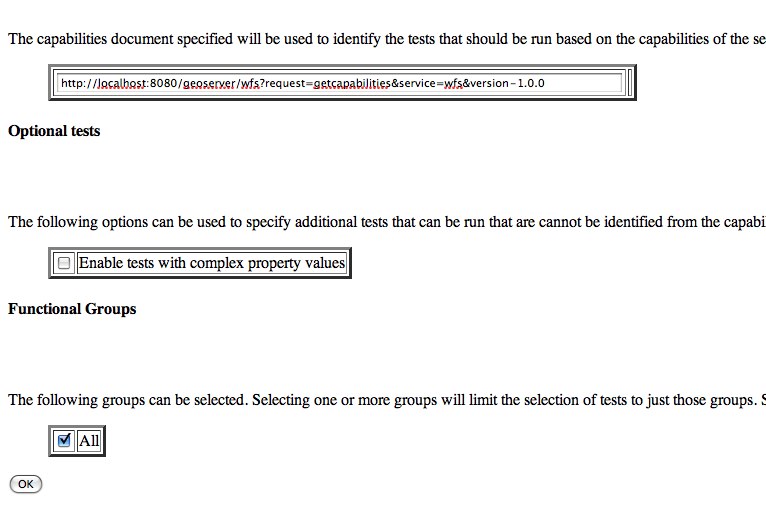

With the following parameters:
Capabilities URL
All
tests included
Run WFS 1.1 tests¶
Note
Running WFS 1.1 tests require PostGIS to be installed on the system.
Create a PostGIS user named “cite”:
createuser cite
Create a PostGIS databased named “cite”, owned by the “cite” user:
createdb -T template_postgis -U cite cite
Change directory to the
citewfs-1.1
data directory and execute the scriptdataset-sf0.sql
:psql -U cite cite < dataset-sf0.sql
Start GeoServer with the
citewfs-1.1
data directory. Example:cd <root of geoserver install> export GEOSERVER_DATA_DIR=<root of geoserver sources>/data/citewfs-1.1 ./bin/startup.sh
Change directory back to the cite tools and run the tests:
ant wfs-1.1

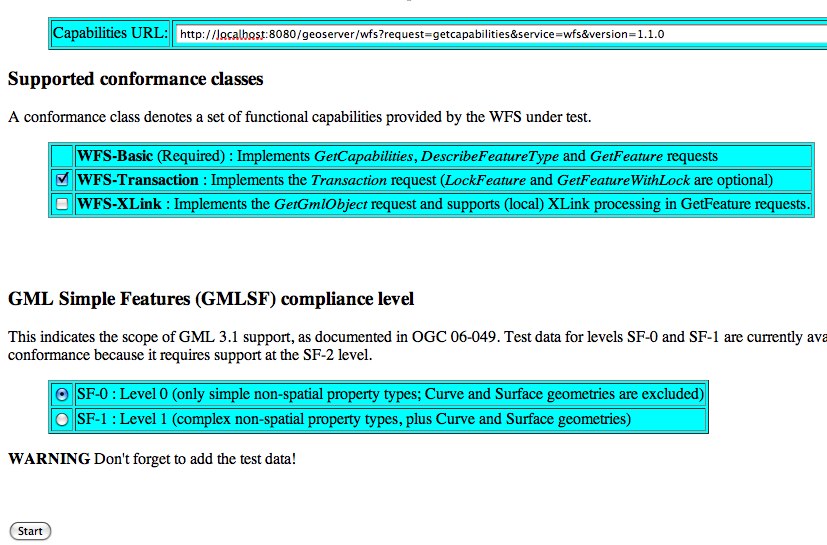

With the following parameters:
Capabilities URL
Supported Conformance Classes
:- Ensure
WFS-Transaction
is checked - Ensure
WFS-Xlink
is unchecked
- Ensure
GML Simple Features
:SF-0
Run WMS 1.1 tests¶
Start GeoServer with the
citewms-1.1
data directory.Change directory back to the cite tools and run the tests:
ant wms-1.1

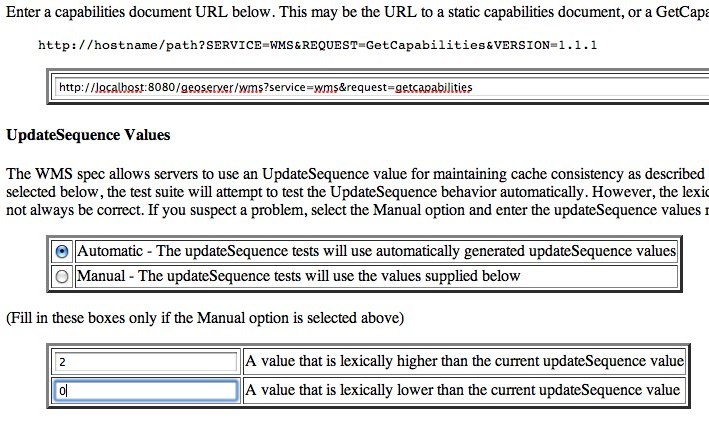

With the following parameters:
Capabilities URL
UpdateSequence Values
:- Ensure
Automatic
is selected - “2” for
value that is lexically higher
- “0” for
value that is lexically lower
- Ensure

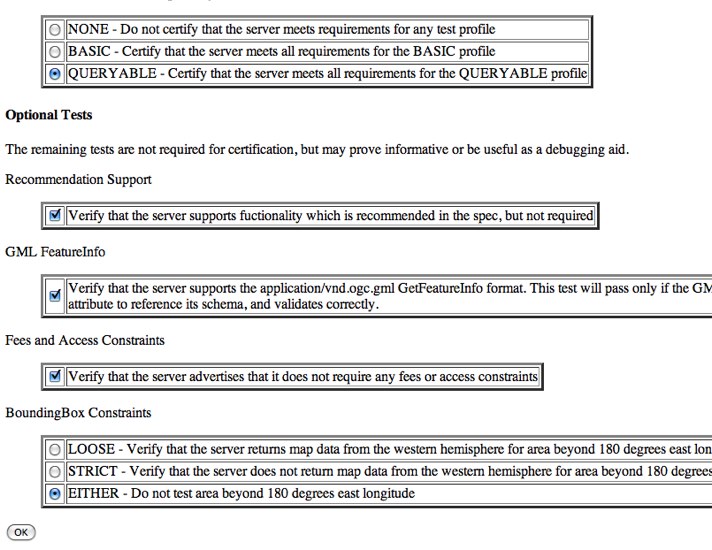

Certification Profile
:QUERYABLE
Optional Tests
:- Ensure
Recommendation Support
is checked - Ensure
GML FeatureInfo
is checked - Ensure
Fees and Access Constraints
is checked - For
BoundingBox Constraints
ensureEither
is selected
- Ensure
Click
OK
Run WCS 1.1 tests¶
Start GeoServer with the
citewcs-1.1
data directory.Change directory back to the cite tools and run the tests:
ant wcs-1.1

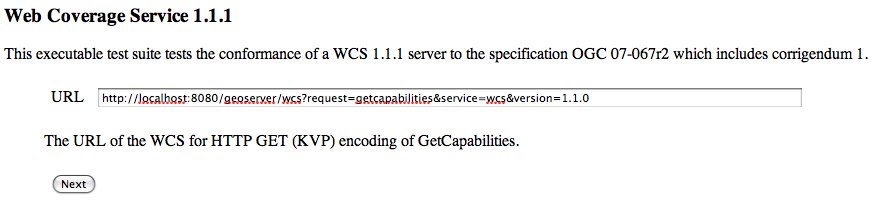

With the following parameters:
Capabilities URL
:
Click
Next

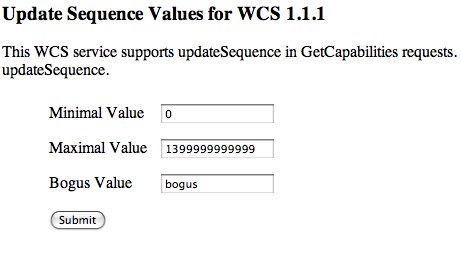

Accept the default values and click
Submit
Run WCS 1.0 tests¶
Warning
The WCS specification does not allow a cite compliant WCS 1.0 and
1.1 version to co-exist. To successfully run the WCS 1.0 cite tests
the wms1_1-<VERSION>.jar
must be removed from the geoserver
WEB-INF/lib
directory.
Remove the
wcs1_1-<VERSION>.jar
fromWEB-INF/lib
directory.Start GeoServer with the
citewcs-1.0
data directory.Change directory back to the cite tools and run the tests:
ant wcs-1.0

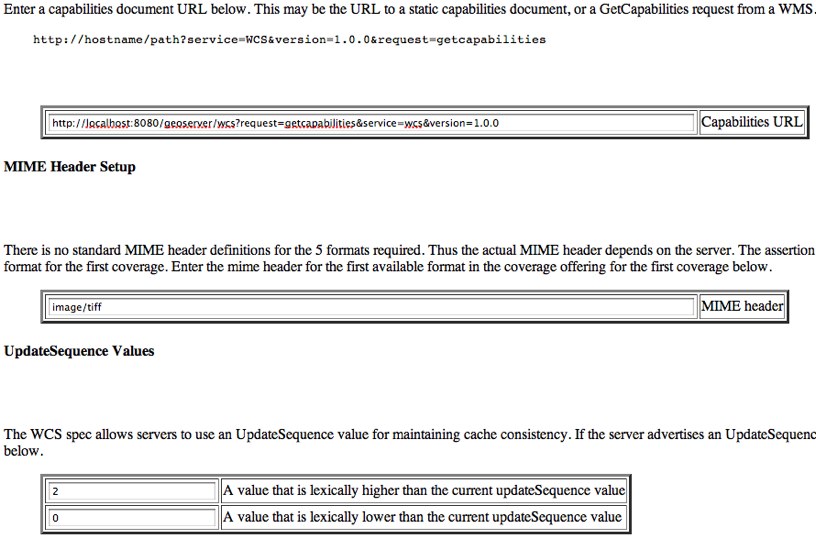

With the following parameters:
Capabilities URL
:MIME Header Setup
: “image/tiff”Update Sequence Values
:- “2” for
value that is lexically higher
- “0” for
value that is lexically lower
- “2” for

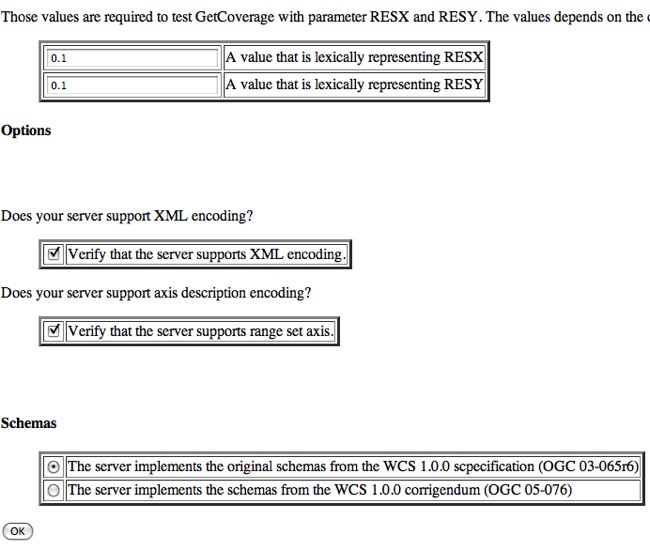

Grid Resolutions
:- “0.1” for
RESX
- “0.1” for
RESY
- “0.1” for
Options
:- Ensure
Verify that the server supports XML encoding
is checked - Ensure
Verify that the server supports range set axis
is checked
- Ensure
Schemas
:- Ensure that
original schemas
is selected
- Ensure that
Click
OK
Teamengine Web Application¶
The Teamengine web application is useful for analyzing results of a test run. To run the web application execute:
ant webapp
From the cite tools checkout. Once started the web app will be available at:
To run on a different port pass the -Dengine.port
system property to ant command.
