SpatiaLite¶

SpatiaLite is the spatial extension of the popular SQLite embedded relational database.

Note

GeoServer does not come built-in with support for SpatiaLite; it must be installed through an extension. Furthermore it requires that additional native libraries be available on the system. Proceed to Installing the SpatiaLite extension for installation details.

SpatiaLite version¶

The GeoServer SpatiaLite extension includes its own versions of SQLite (3.7.2) and SpatiaLite (2.4.0) and therefore these libraries need not be installed on the system in order to use the extension. However this internal version of SpatiaLite is compiled against the PROJ and GEOS libraries so they must be installed on the system in order for the extension to function. See Native Libraries for more details.

Supported platforms¶

This extension is supported for Windows, Linux, and Mac OS X. Both 32-bit and 64-bit platforms are supported. For Mac OS X only Intel based machines are supported (ie. not PowerPC).

Installing the SpatiaLite extension¶

Download the SpatiaLite extension from the nightly GeoServer community module builds.

Warning

Make sure to match the version of the extension to the version of the GeoServer instance.
Extract the contents of the archive into the WEB-INF/lib directory of the GeoServer installation.
Ensure the native library dependencies are satisfied.

Native Libraries¶

The version of SpatiaLite included in the extension is compiled against the GEOS and PROJ libraries so they must be installed on the system. If the libraries are not installed on the system the extension will not functionand remain disabled.

Note

Pre-compiled libraries are available for the following platforms and can be found here.

In general if the libraries are installed in a “default” location then they should be picked up by java with no problem. However some systems will require further configuration that differs based on operating system.

Windows¶

The DLL’s must be copied into the C:\WINDOWS\system32 directory.

Linux¶

If the libraries are not installed in a default search location like /usr/lib then the LD_LIBRARY_PATH environment variable must be set and visible to Java.

Mac OS X¶

Same as Linux except that the DYLD_LIBRARY_PATH environment variable is used.

Adding a SpatiaLite database¶

Once the extension is properly installed SpatiaLite will show up as an option when creating a new data store.

SpatiaLite in the list of vector data sources

Configuring a SpatiaLite data store¶

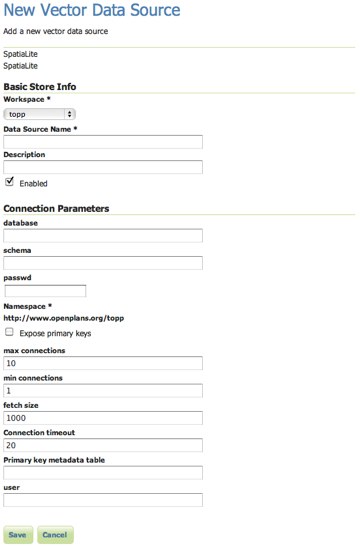

Configuring a SpatiaLite data store

`database`	The name of the database to connect to. See notes below.
`schema`	The database schema to access tables from. Optional.
`user`	The name of the user to connect to the database as. Optional.
`password`	The password to use when connecting to the database. Optional, leave blank for no password.
`max connections` `min connections`	Connection pool configuration parameters. See the Database Connection Pooling section for details.

The database parameter may be specified as an absolute path or a relative one. When specified as a relative path the database will created in the spatialite directory, located directly under the root of the GeoServer data directory.
