arcgis api for js入门开发系列五地图态势标绘


地图态势标绘

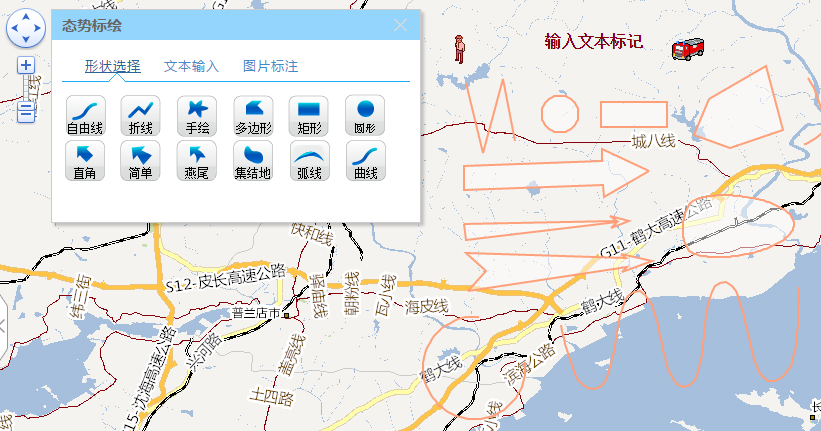

上一篇实现了demo的地图查询功能,本篇新增地图态势标绘模块,截图如下:

本篇核心的在于调用API的Draw工具:https://developers.arcgis.com/javascript/3/jsapi/draw-amd.html

require(["esri/toolbars/draw"], function(Draw) { /* code goes here */ });

构造函数:

new Draw(map, options?)

一般来说,传参map对象进来就行,其他参数可选的,用默认的就行,除非你想专门设置;

默认的可绘制图形类型常量Constants:

ARROW    Draws an arrow.箭头
CIRCLE    Draws a circle.圆形
DOWN_ARROW    Draws an arrow that points down.下箭头
ELLIPSE    Draws an ellipse.椭圆
EXTENT    Draws an extent box.矩形
FREEHAND_POLYGON    Draws a freehand polygon.手绘多边形
FREEHAND_POLYLINE    Draws a freehand polyline.手绘线
LEFT_ARROW    Draws an arrow that points left.左箭头
LINE    Draws a line.线
MULTI_POINT    Draws a Multipoint.多点
POINT    Draws a point.点
POLYGON    Draws a polygon.多边形
POLYLINE    Draws a polyline.折线
RECTANGLE    Draws a rectangle.矩形
RIGHT_ARROW    Draws an arrow that points right.右键头
TRIANGLE    Draws a triangle.三角形
UP_ARROW    Draws an arrow that points up.上箭头

可以设置绘制的符号样式:

其中,activate函数可以激活触发绘制的行为,绘制结束之后在绘制结束事件里面获取geometry:

activate(geometryType, options?)

地图态势标绘实现的思路:利用API的Draw工具实现普通的点线面绘制,但是对于燕尾箭头、集结地、弧线、曲线、简单箭头等特殊的军事态势需要自定义来绘制了,所以需要拓展Draw工具才能实现,也是本篇的精华所在。

一、下面谈谈怎么在项目引用拓展Draw类js文件:

1是继承拓展Draw的文件目录;2是实现态势标绘模块的js文件。

首先,需要在map.html页面引用进来:

<script type="text/javascript">
        //配置arcgis拓展解析天地图服务类引用的路径
        dojoConfig = {
            parseOnLoad: true,
            packages: [{
                name: 'tdlib',
                location: this.location.pathname.replace(/\/[^/]+$/, "") + "/js/tdlib"
            }],
            paths: {
                Extension: location.pathname.replace(/\/[^/]+$/, "") + "/js/main/drawExtension/Extension",
                ExtensionDraw: location.pathname.replace(/\/[^/]+$/, "") + "/js/main/drawExtension/plotDraw"
            }
        };
    </script>

其中,paths代表需要引用的路径。

<script type="text/javascript" src="js/main/map.plot.js"></script>

其次,在map.js文件的初始化里面引用拓展的js文件DrawEx以及DrawExt:

(function () {
    dojo.require("Extension.DrawEx");
    dojo.require("ExtensionDraw.DrawExt");
})();

最后,在工具栏菜单的态势标绘菜单响应事件里面调用plot.js即可:

//态势标绘
        $("#bPlot").click(function () {
            //初始化军势标绘接口
            if (!DCI.Plot.isload)
                DCI.Plot.Init(map);
            if (DCI.Plot.dialog)
                DCI.Plot.dialog.close();
            DCI.Plot.dialog = jDialog.dialog({
                title: '态势标绘',
                width: 370,
                height: 200,
                left: 450,
                top: 200,
                modal: false, // 非模态,即不显示遮罩层
                content: DCI.Plot.Html
            });
            DCI.Plot.InitEvent();

        });

二、谈谈Draw工具调用的思路,不管调用arcgis api原生态的Draw,还是拓展Draw的,都是先创建一个Draw对象,然后监听Draw的draw-end绘制结束的回调函数,获取绘制的图形叠加在地图显示;Draw工具的activate函数会触发draw-end回调函数;

首先,初始化Draw工具对象以及默认的符号样式symbol:

//定义默认点 线  面符号
DCI.Plot.markerSymbol = new esri.symbol.SimpleMarkerSymbol(esri.symbol.SimpleMarkerSymbol.STYLE_CIRCLE, 8, new esri.symbol.SimpleLineSymbol(esri.symbol.SimpleLineSymbol.STYLE_SOLID, new dojo.Color([255, 69, 0]), 2), new dojo.Color([255, 255, 255, 1]));
            DCI.Plot.lineSymbol = new esri.symbol.SimpleLineSymbol(esri.symbol.SimpleLineSymbol.STYLE_SOLID, new dojo.Color([255, 160, 122]), 2);
            DCI.Plot.fillSymbol = new esri.symbol.SimpleFillSymbol(esri.symbol.SimpleFillSymbol.STYLE_SOLID, new esri.symbol.SimpleLineSymbol(esri.symbol.SimpleLineSymbol.STYLE_SOLID, new dojo.Color([255, 160, 122]), 2), new dojo.Color([255, 255, 255, 0.5]));
            //初始化拓展Draw
            DCI.Plot.toolbar = new Extension.DrawEx(map);
            DCI.Plot.toolbar.on("draw-end", DCI.Plot.addToMap);
            DCI.Plot.toolbar1 = new ExtensionDraw.DrawExt(map);
            DCI.Plot.toolbar1.on("draw-end", DCI.Plot.addToMap);
            //arcgis api自带的Draw
            DCI.Plot.drawToolbar = new esri.toolbars.Draw(map);
            DCI.Plot.drawToolbar.markerSymbol = DCI.Plot.markerSymbol;
            DCI.Plot.drawToolbar.lineSymbol = DCI.Plot.lineSymbol;
            DCI.Plot.drawToolbar.fillSymbol = DCI.Plot.fillSymbol;
            DCI.Plot.drawToolbar.on("draw-end", DCI.Plot.drawEnd);

其次,触发调用Draw绘制:

case 0://plot_freehandline
                        DCI.Plot.drawFreeHandPolyline(null, function (geometry) {
                            symbol = DCI.Plot.lineSymbol;
                            DCI.Plot.drawEndPlot(geometry, symbol);
                        });
                        break;
                    case 1://plot_line
                        DCI.Plot.drawPolyline(null, function (geometry) {
                            symbol = DCI.Plot.lineSymbol;
                            DCI.Plot.drawEndPlot(geometry, symbol);
                        });
                        break;
                    case 2://emergency_freehand
                        DCI.Plot.drawFreeHandPolygon(null, function (geometry) {
                            symbol = DCI.Plot.fillSymbol;
                            DCI.Plot.drawEndPlot(geometry, symbol);
                        });
                        break;
                    case 3://plot_polygon
                        DCI.Plot.drawPolygon(null, function (geometry) {
                            symbol = DCI.Plot.fillSymbol;
                            DCI.Plot.drawEndPlot(geometry, symbol);
                        });
                        break;
                    case 4://plot_extent
                        DCI.Plot.drawExtent(null, function (geometry) {
                            symbol = DCI.Plot.fillSymbol;
                            DCI.Plot.drawEndPlot(geometry, symbol);
                        });
                        break;
                    case 5://emergency_freehand
                        DCI.Plot.drawCircle(null, function (geometry) {
                            symbol = DCI.Plot.fillSymbol;
                            DCI.Plot.drawEndPlot(geometry, symbol);
                        });
                        break;
                    case 6://直角箭头
                        DCI.Plot.drawStraightArrow(null, function (geometry) {
                            symbol = DCI.Plot.fillSymbol;
                            DCI.Plot.drawEndPlot(geometry, symbol);
                        });
                        break;
                    case 7://简单箭头
                        DCI.Plot.toolbar.activate(Extension.DrawEx.FREEHAND_ARROW);
                      break;
                    case 8://燕尾箭头
                        DCI.Plot.toolbar1.fillSymbol = DCI.Plot.fillSymbol;
                        DCI.Plot.toolbar1.activate("tailedsquadcombat");
                        break;
                    case 9://集结地
                        DCI.Plot.toolbar.activate(Extension.DrawEx.BEZIER_POLYGON);
                      break;
                    case 10://弧线
                        DCI.Plot.toolbar.activate(Extension.DrawEx.CURVE);
                      break;
                    case 11://曲线
                        DCI.Plot.toolbar.activate(Extension.DrawEx.BEZIER_CURVE);
                      break;
//画点
        drawPoint: function (symbol, onDrawEnd) {
            DCI.Plot.onDrawEnd = onDrawEnd;
            if (symbol) {
                DCI.Plot.drawToolbar.markerSymbol = symbol;
            }
            DCI.Plot.drawToolbar.activate(esri.toolbars.Draw.POINT);
            DCI.Plot.disablePan();
        },
        //画折线
        drawPolyline: function (symbol, onDrawEnd) {
            this.onDrawEnd = onDrawEnd;
            if (symbol) {
                this.drawToolbar.lineSymbol = symbol;
            }
            this.drawToolbar.activate(esri.toolbars.Draw.POLYLINE);
            this.disablePan();
        },
        //自由线
        drawFreeHandPolyline: function (symbol, onDrawEnd) {
            this.onDrawEnd = onDrawEnd;
            if (symbol) {
                this.drawToolbar.lineSymbol = symbol;
            }
            this.drawToolbar.activate(esri.toolbars.Draw.FREEHAND_POLYLINE);
            this.disablePan();
        },
        //画多边形
        drawPolygon: function (symbol, onDrawEnd) {
            this.onDrawEnd = onDrawEnd;
            if (symbol) {
                this.drawToolbar.fillSymbol = symbol;
            }
            this.drawToolbar.activate(esri.toolbars.Draw.POLYGON);
            this.disablePan();
        },
        //手绘多边形
        drawFreeHandPolygon: function (symbol, onDrawEnd) {
            this.onDrawEnd = onDrawEnd;
            if (symbol) {
                this.drawToolbar.fillSymbol = symbol;
            }
            this.drawToolbar.activate(esri.toolbars.Draw.FREEHAND_POLYGON);
            this.disablePan();
        },
        //画圆形
        drawCircle: function (symbol, onDrawEnd) {
            this.onDrawEnd = onDrawEnd;
            if (symbol) {
                this.drawToolbar.fillSymbol = symbol;
            }
            this.drawToolbar.activate(esri.toolbars.Draw.CIRCLE);
            this.disablePan();
        },
        //画矩形
        drawExtent: function (symbol, onDrawEnd) {
            this.onDrawEnd = onDrawEnd;
            if (symbol) {
                this.drawToolbar.fillSymbol = symbol;
            }
            this.drawToolbar.activate(esri.toolbars.Draw.EXTENT);
            this.disablePan();
        },
        //直角箭头
        drawStraightArrow: function (symbol, onDrawEnd) {
            this.onDrawEnd = onDrawEnd;
            if (symbol) {
                this.drawToolbar.fillSymbol = symbol;
            }
            this.drawToolbar.activate(esri.toolbars.Draw.ARROW);
            this.disablePan();
        },

最后,添加绘制图形在地图上展示:

/**
         * 绘制完毕调用的函数
        */
        drawEndPlot: function (geometry,symbol) {
            var title = "标题";
            var htmlCon = "测试内容测试内容";
            var attr = { "title": title, "content": htmlCon};
            var graphic = new esri.Graphic(geometry, symbol, attr);
            DCI.Plot.graphicslayer.add(graphic);
            DCI.Plot.deactivateDraw();
            DCI.Plot.map.setMapCursor('auto');//设置鼠标的光标
        },
/**
  * 拓展Draw绘制完毕调用的函数
*/
        addToMap: function (evt) {
            DCI.Plot.map.setMapCursor('auto');//设置鼠标的光标
            var symbol;
            DCI.Plot.toolbar.deactivate();
            DCI.Plot.toolbar1.deactivate();
            switch (evt.geometry.type)
            {
                case "point":
                case "multipoint":
                    symbol = DCI.Plot.markerSymbol;
                    break;
                case "polyline":
                    symbol = DCI.Plot.lineSymbol;
                    break;
                default:
                    symbol = DCI.Plot.fillSymbol;
                    break;
            }
            var title = "标题";
            var htmlCon = "测试内容测试内容";
            var attr = { "title": title, "content": htmlCon};
            var graphic = new esri.Graphic(evt.geometry, symbol, attr);
            DCI.Plot.graphicslayer.add(graphic);
        },
