arcgis api for js入门开发系列十九图层在线编辑


图层在线编辑

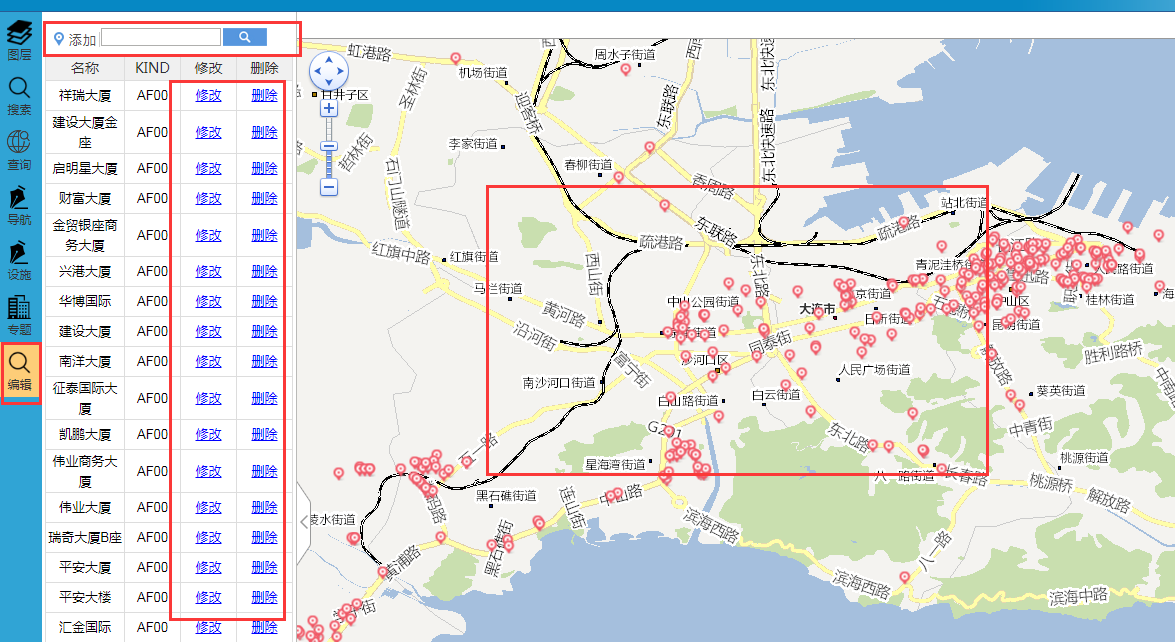

本篇主要讲述的是利用arcgis api实现图层在线编辑功能模块,效果图如下:



实现思路:

1.arcgis server发布的FeatureServer服务提供的图层在线编辑能力:

2.实现的在线编辑(增删改),主要是通过前端ajax请求后台FeatureServer服务来实现的

(1)http://120.199.78.138:6080/arcgis/rest/services/dlsde/FeatureServer/0/updateFeatures

public void ProcessRequest (HttpContext context) {
        string featureserverurl = context.Request.Params["featureserverurl"];
        string features = context.Request.Params["features"];
        string param = "features=" + features + "&f=json";
        string url = featureserverurl + "/updateFeatures";
        string ret = PostDataToUrl(param, url, "application/x-www-form-urlencoded");

        context.Response.Write(ret);
}

(2)http://120.199.78.138:6080/arcgis/rest/services/dlsde/FeatureServer/0/addFeatures

    public void ProcessRequest (HttpContext context) {
        string featureserverurl = context.Request.Params["featureserverurl"];
        string features = context.Request.Params["features"];
        string param = "features=" + features + "&f=json";
        string url = featureserverurl + "/addFeatures";
        string ret = PostDataToUrl(param, url, "application/x-www-form-urlencoded");

        context.Response.Write(ret);
    }

(3)http://120.199.78.138:6080/arcgis/rest/services/dlsde/FeatureServer/0/deleteFeatures

    public void ProcessRequest (HttpContext context) {
        string featureserverurl = context.Request.Params["featureserverurl"];
        string id = context.Request.Params["OBJECTID"];
        string param = "where=OBJECTID=" + id + "&f=json";
        string url = featureserverurl + "/deleteFeatures";
        string ret = PostDataToUrl(param, url, "application/x-www-form-urlencoded");

        context.Response.Write(ret);
        context.Response.End();
    }

3.前端ajax请求

(1)添加一条记录:

        var features = [];
        var rec = {};
        rec.attributes = {};
        rec.geometry = DCI.editLayers.geometry;
        rec.attributes["NAME"] = $("#update_name").val();
        rec.attributes["KIND"] = $("#update_kind").val();
        features.push(rec);
        var feats = JSON.stringify(features);
        /*[{ "attributes": { "NAME": "112", "KIND": "4080" }, "geometry": { "type": "point", "x": 121.29894825018249, "y": 39.72910692098025, "spatialReference": { "wkid": 4326 } } }]*/
        var params = { features: feats, f: "pjson", featureserverurl: MapConfig.sdeURL };

        $.ajax({
                type: "post",
                //dataType: "json",
                url: getRootPath() + "handler/AddFeatureHandler.ashx",
                data: params,
                //async: false,//同步
                success: function (response, textStatus) {
                    var ret = JSON.parse(response);
                    if (ret.addResults && ret.addResults[0].success) {
                        promptdialog("提示", "添加成功!");
                        DCI.editLayers.InitSde("");
                        DCI.editLayers.map.infoWindow.hide();
                    } else {
                        promptdialog("提示", "添加失败!");
                    }
                },
                error: function (e) {
                    var error = e;
                    promptdialog("提示", "响应超时!");
                }
            });

(2)修改一条记录:

        var features = [];
        var rec = {};
        rec.attributes = {};
        rec.attributes["OBJECTID"] = parseInt(objectid);
        rec.attributes["NAME"] = $("#update_name").val();
        rec.attributes["KIND"] = $("#update_kind").val();
        features.push(rec);
        var feats = JSON.stringify(features);
        /*[{ "attributes": { "NAME": "112", "KIND": "4080" }, "geometry": { "type": "point", "x": 121.29894825018249, "y": 39.72910692098025, "spatialReference": { "wkid": 4326 } } }]*/
        var params = { features: feats, f: "pjson", featureserverurl: MapConfig.sdeURL };

        $.ajax({
                type: "post",
                //dataType: "json",
                url: getRootPath() + "handler/UpdateFeatureHandler.ashx",
                data: params,
                //async: false,//同步
                success: function (response, textStatus) {
                    var ret = JSON.parse(response);
                    if (ret.updateResults[0].success) {
                        promptdialog("提示", "更新成功!");
                        DCI.editLayers.InitSde("");
                        DCI.editLayers.map.infoWindow.hide();
                    } else {
                        promptdialog("提示", "更新失败!");
                    }
                },
                error: function (e) {
                    var error = e;
                    promptdialog("提示", "响应超时!");
                }
            });

(3)删除一条记录:

      var objectid = parseInt(id);
      var params = { OBJECTID: objectid, featureserverurl: MapConfig.sdeURL };
      $.ajax({
                         type: "post",
                         //dataType: "json",
                         url: getRootPath() + "handler/DeleteFeatureHandler.ashx",
                         data: params,
                         //async: false,//同步
                         success: function (response, textStatus) {
                             var ret = JSON.parse(response);
                             if (ret.success) {
                                 promptdialog("提示", "删除成功!");
                                 DCI.editLayers.InitSde("");
                                 DCI.editLayers.map.infoWindow.hide();
                             } else {
                                 promptdialog("提示", "删除失败!");
                             }
                         },
                         error: function (e) {
                             var error = e;
                             promptdialog("提示", "响应超时!");
                         }
       });
